Cutting
Reinforced Cut-off Wheel (RCO)
Double-net reinforced resin-bonded wheels for fast, safe cut-off on carbon steel, stainless and structural sections.
From precision cut-off on stainless pipe to heavy snag work in a foundry, here is the full range, grouped the way you actually shop for them.
Double-net reinforced resin-bonded wheels for fast, safe cut-off on carbon steel, stainless and structural sections.

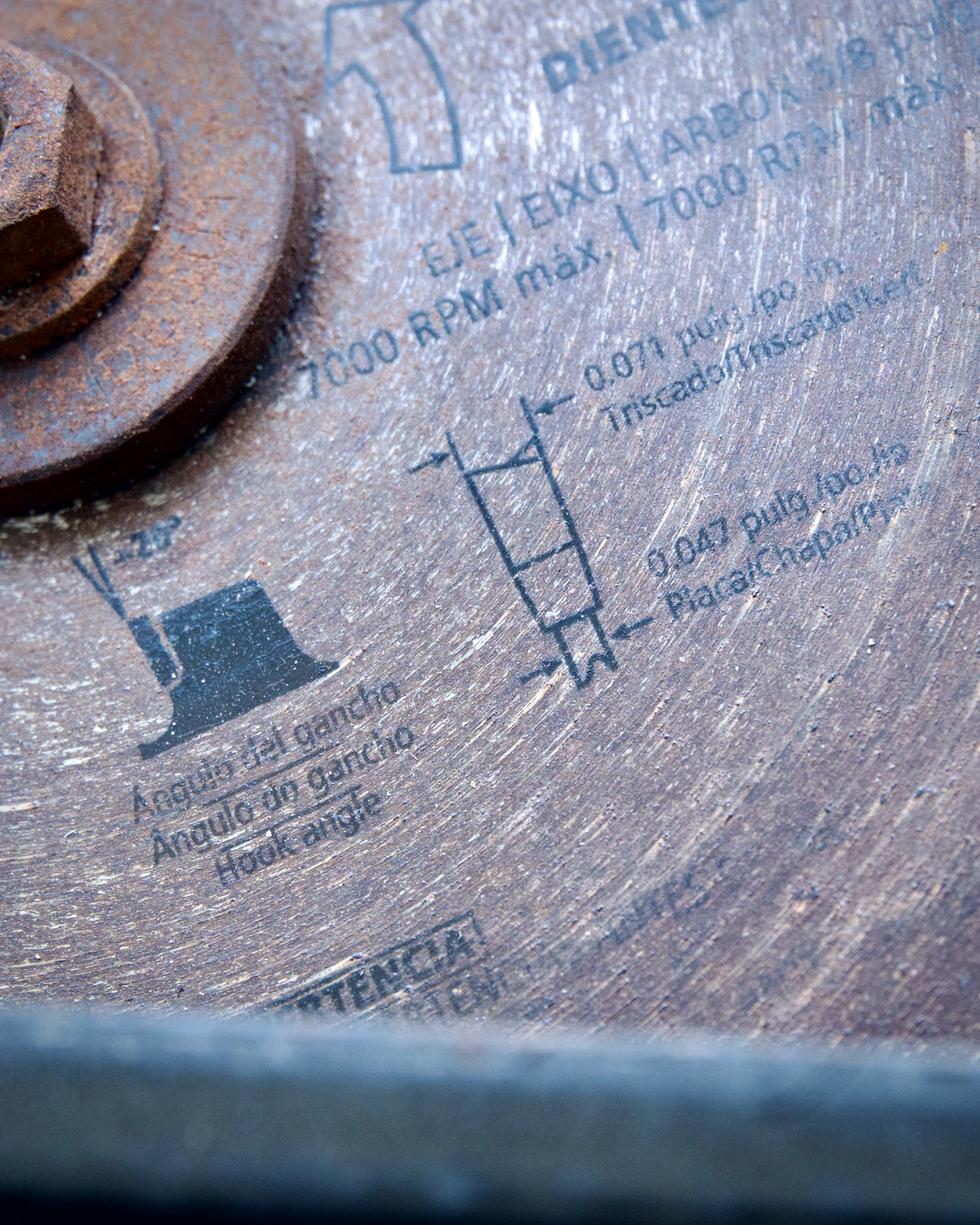

Iron-, sulphur- and chloride-free formulation for stainless steel and nickel alloys. Clean cut, no contamination.

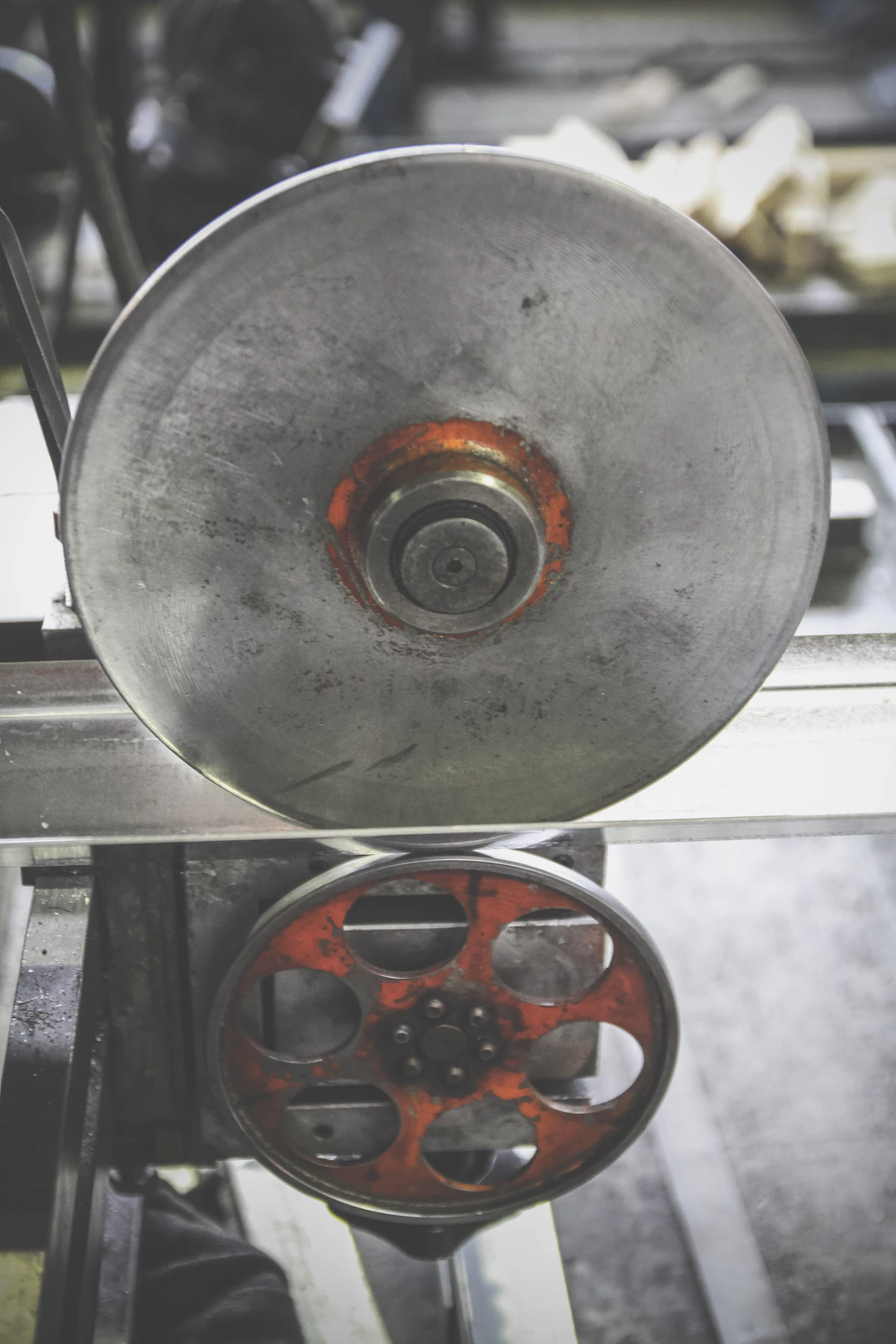

Precision thin wheels for sample preparation: cool, burn-free cut for hardness testing and microscopy labs.
Heavy-duty cut-off for foundry risers, gates and heavy stock. Built to shrug off side loads.

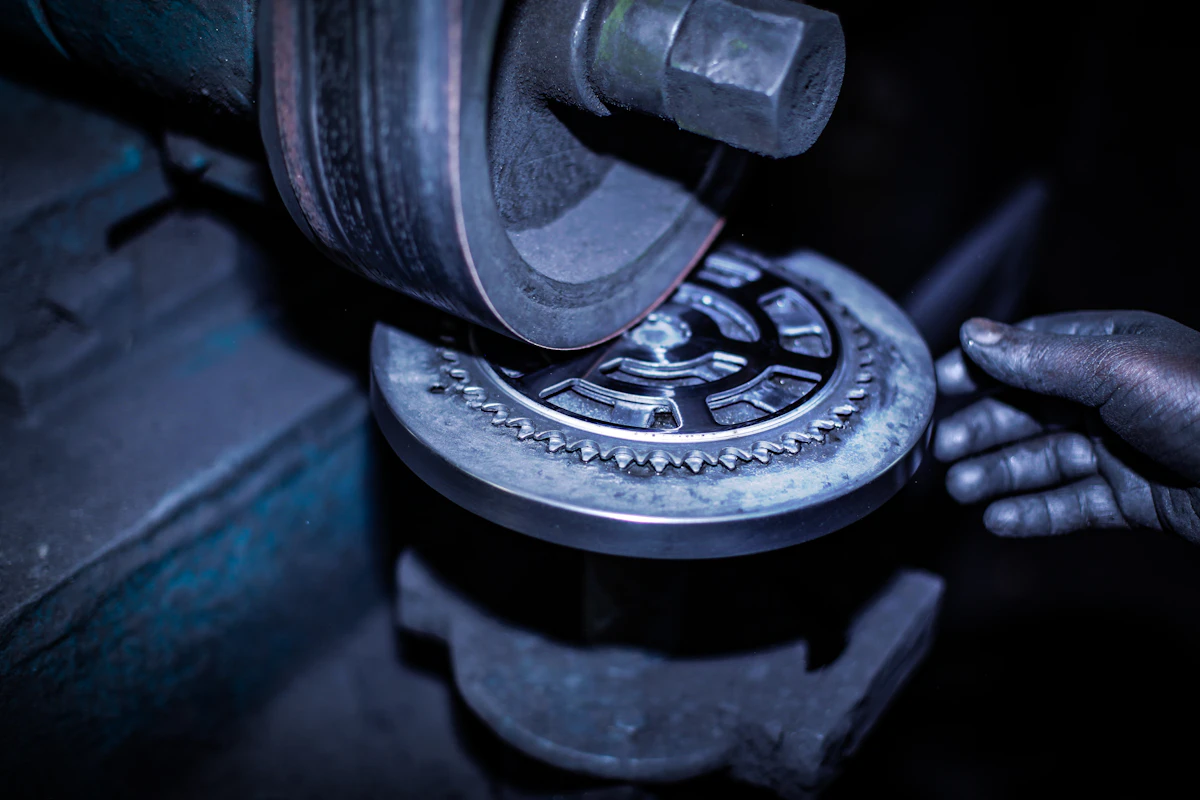

Unreinforced resin-bonded cut-off wheels for fixed-position chop saws and precision fabrication cuts.
The workhorse of fabrication: weld dressing, bevel grinding, mould clean-up, and general stock removal.
Pedestal and bench grinding for tool rooms, blacksmith work, tipping and general maintenance grinding.
Extra-thick depressed centre wheels for sustained stock removal in foundry and steel-mill snag work.
Dense, hot-pressed wheels for heavy stock removal on stainless, carbon, alloy steel and cast iron.
Self-sharpening zirconia-alumina flap discs: aggressive stock removal and clean finish in one pass.
Economical AO flap disc for carbon-steel fabrication, wood, and general surface blending.
Large-diameter wheels for billet surface conditioning, gate removal, and engine-bore cylinder grinding.
Two-sided surface-grinding wheels with moulded-in nut inserts, used on fixed-spindle grinders for precision surfacing.
Engineered grain for hot mills, cold mills, tandem mills, temper mills, specialty mills and paper mills.
Trapezoidal and rectangular segments for vertical spindle and surface grinders in heavy industry.
Narrow-face vitrified and resin-bonded wheels for industrial knife sharpening: paper, food, plastic, textile.

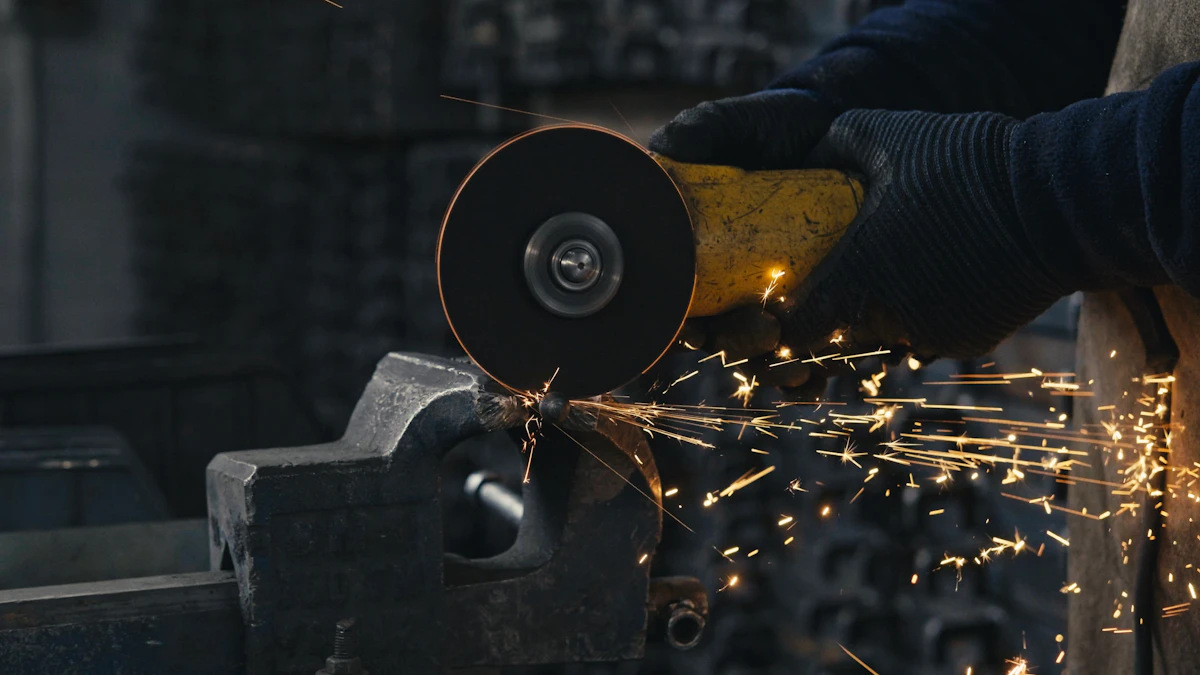

Double-net reinforced thin wheels for portable cutters: high safety margin on hand-held tools at elevated RPM.
Our reinforced cut-off wheels are built around a double-layer fibreglass net embedded on both faces. The resin-bonded A-grain matrix is tuned for a self-sharpening cut, so you are cutting, not polishing, and every wheel is over-speed spin-tested to EN 12413 before it leaves the unit.
| Diameters | 100 / 115 / 125 / 180 / 230 / 305 / 355 / 406 mm |
| Thickness | 0.8 – 4 mm (depending on size) |
| Bore | 16 / 22.23 / 25.4 mm (or custom) |
| Grade | A24R – A60Q / WA46 for inox |
| Max RPM | 13,300 (100 mm) down to 4,400 (406 mm) |
| Standard | EN 12413 · OSA spin tested |
Depressed-centre, hot-pressed and off-hand grinding wheels, every one designed so the first cut behaves like the last. We run hardness checks on every batch with shore-scleroscope and rockwell-style tests, so one box of wheels behaves like the box before it.
| Diameters | 100 / 115 / 125 / 180 / 230 mm (hand) · up to 400 mm (pedestal) |
| Thickness | 6 / 8 / 10 mm |
| Grade | A24 – A36 / WA for stainless |
| Hardness | Q – R – S (as specified) |
| Max RPM | 13,300 (100 mm) · 6,650 (230 mm) |
Zirconia-alumina (for heavy steel) and aluminium-oxide (for general fabrication and wood) coated flaps, bonded onto fibreglass backing for flex and a long service life. Conical for edge work, flat for flat surfaces.
| Diameters | 100 / 115 / 125 / 180 mm |
| Grits | P36 / P40 / P60 / P80 / P120 |
| Shape | Type 27 flat · Type 29 conical |
| Backing | Fibreglass (standard) · Plastic (trimmable) |
| Grain | Zirconia · Aluminium Oxide · Ceramic (on request) |
Swing-frame, pedestal and nut-insert duplex wheels handle the jobs that eat a standard depressed-centre wheel for breakfast: billet conditioning, engine-bore surfacing, and gate removal. Built for side-load and long runs.
| Diameters | 500 / 600 / 750 / 900 mm |
| Bond | Resin · Shellac · Vitrified |
| Grade | A14 – A24 for heavy removal |
| Use case | Foundry gate removal, billet surfacing, steel-mill snag |
Every roll grinding wheel is engineered around the mill it is running on: hot, cold, tandem, temper, specialty, or paper. We work with your mill engineers to tune grain, bond, and structure to your roll material and finish target.
| Diameters | 600 – 1100 mm (custom up to 1250) |
| Face width | 75 – 200 mm |
| Grain | Fused Alumina · SG · Seeded-gel ceramic |
| Applications | Hot mill · Cold mill · Temper · Tandem · Paper · Specialty |
Segments, knife wheels, DNT, and bespoke shapes made to your machine drawings. Send us a DXF and a use case, we will get back with a trial batch.
| Custom shapes | From machine drawing or DXF |
| Typical items | Segments · Knife wheels · DNT · Duplex wheels · Plugs & cones |
| MOQ | Low MOQ for trial lots, scale once validated |
| Lead time | 3 – 6 weeks for a new bespoke SKU |
Most of our catalogue started as one customer asking "can you make this?" Send us the drawing, the material and the machine, we will reply with a quote.
Request a custom wheel
